Highly Heat Reflective Paint SurfCool ®

Contact us

Prevents thermal runaway of internal equipment and combats heat islands. Heat-shielding paint SurfCool

SurfCool series is a heat-shielding paint that uses special materials that efficiently reflect sunlight's near-infrared rays (heat rays).

By painting it on roofs, walls, cabinets, etc., it suppresses temperature rise, which is effective in preventing thermal runaway and breakdown of internal equipment. It also reduces electricity consumption for air conditioning, contributing to cost reduction. In addition, painting it on sidewalks and parking lots helps reduce the heat felt by pedestrians and combats the heat island effect.

July 17, 2025
The new product is Highly reflective heat shielding paint W, a water-based product that contains almost no volatile organic compounds (VOCs) and is friendly to both people and the environment. It is also easier to transport and store.
"NTT-AT Launches Water-Based Heat Reflective Paint SurfCool W"
August 30, 2024
Books "Preparation, stabilization and coating technology of coating fluid" (Opens in a new window) An article I wrote, "Characteristics and application examples of high solar reflectance (heat shielding) paints," was published in.

Reflects infrared rays and prevents temperature rise. Highly reflective heat-insulating paint "SurfCool"

Mechanism of thermal insulation paint

SurfCool series is a paint that contains a special material that reflects sunlight in the near-infrared range more efficiently than ordinary paints, thereby suppressing temperature increases on painted surfaces and within structures.
Near infrared rays are most easily absorbed by materials, affecting the molecular motion of the material, which results in the generation of heat. By reflecting this light rather than absorbing it, the generation of heat can be suppressed.

There are also heat-insulating paints that reduce heat conduction as a heat-resistant paint. Heat-insulating paints and heat-insulating paints are similar, but if they are not used properly, they can have the opposite effect.
SurfCool series offers a choice between heat insulation and thermal insulation, allowing us to propose a solution that best suits your facility's conditions.

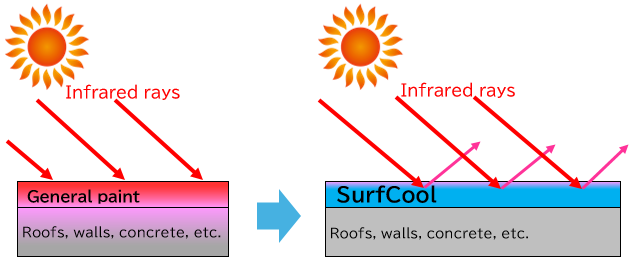

Image of infrared reflection

図:遮熱塗料を塗ることで熱を反射し、非塗物の温度上昇を抑制します。
With regular paint, infrared rays are converted into heat, causing a significant rise in temperature.
In the case of SurfCool, it reflects SurfCool rays, preventing the temperature from rising.

Application example for metal box

写真:サーモグラフィーを見ると、サーフクールを塗った場合、温度が低いことがわかります。
SurfCool S-II painted area.
You can see that the box painted with SurfCool is cooler.

Features and comparison

feature
SurfCool W New!
Main use
metal box, roof, etc.
Metal, resin, etc. Asphalt, concrete, etc.
gloss
Yes
Yes None
Resin system
Acrylic silicone resin (2 liquid type)
Acrylic silicone resin (one-component type)
Acrylic emulsion resin (one-component type)
solvent
Weak solvent
Water-based (no organic solvents)
Water-based (no organic solvents)
Primer material Dedicated undercoat Dedicated undercoat Not required (special sealer required for concrete)
hue
15 colors
36 colors
13 colors
Construction
roller, brush, spray
Roller, brush, spray
roller, brush, spray
painting area
Approximately 62m2 (15kg can)
Approximately 66m2 (16kg can)
Approximately 18m 2 (15kg can)
Excellent workability
It can be applied by brush, roller, or spray, and can be used according to the item being painted.
Resistant to metal corrosion
Since it uses a special undercoat material with excellent corrosion resistance, it can be used safely on outdoor metal equipment.
Can also provide thermal insulation
By adding an insulating layer that prevents the temperature inside the building from escaping, it is possible to achieve both heat insulation and thermal insulation. (Please contact us for details.)


Heat shielding properties



Heat shielding properties

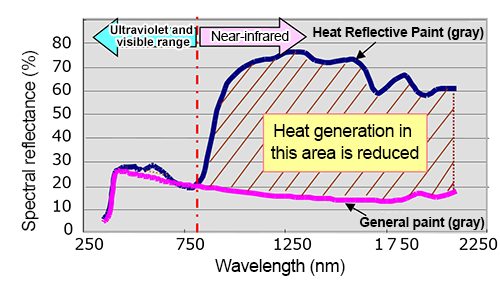

Figure Wavelength of sunlight and spectral reflectance due to highly reflective (heat shielding) paint

The near-infrared rays (wavelength: 780-2500nm) contained in sunlight are most easily absorbed by substances and affect the molecular motion of substances, resulting in heat generation.
Highly reflective (heat shielding) paint reflects near-infrared rays with high efficiency and suppresses heat generation on the coating surface.



For heat protection of metal equipment and resin surfaces: Click here for details of SurfCool S-II →

If you want to use a water-based product that is less flammable, we recommend the water-based SurfCool W.​ ​Go to the inquiry form →

For heat protection of concrete and asphalt: Click here for details of SurfCool R →




NTTGxInnoブランドロゴマーク

This project is part of the "NTT G×Inno" GX solution brand being developed by the NTT Group.
*"NTT G×Inno" is a registered trademark of NTT Corporation.
It is an abbreviation for "NTT GX (Green Transformation) x Innovation" and aims to provide solutions to society through
This is an initiative to bring about innovation in the GX field and contribute to achieving carbon neutrality by 2050.
